Universal PC-Based ECG

An economical device that turns your choice of
laptop or desktop PC into a diagnostic ECG

PC-ECG on patient

Large display lets you monitor ECGs in real-time; when you are ready to capture and save a report you can do so by clicking on the record key.

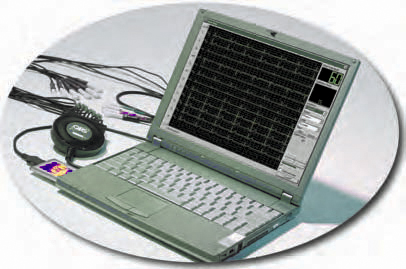

pc-based ecg

Connects to a CF/PC card slot, serial or USB port.

PC ECG Sample

Print full page reports on most
Windows compatible printer

Technical Specifications

Brochure (pdf)

Sample Screens

  • 12 Simultaneous Lead Acquisition
  • Cost-effective - Call for competitive offer including Measurements and Interpretation
  • Lightweight (9.9 oz. / 280 g) - The smallest and lightest PC-based ECG in the market
  • Prints landscape or portait reports on most Windows compatible printers
  • Customizable
  • An unlimited number of ECGs can be stored for future reference, and backed up on removable media (flash drive, CD, etc.)

Interpretation Software Option

  • The Universal ECG interprets tracings using the Louvaine analysis program developed by Cardionics SA, in conjunction with the Catholic University of Louvaine (UCL) in Belgium.
  • Clinical research, published in 1991*, studied the Louvaine and 8 other ECG analysis algorithms and found the Louvain algorithm to have the best total accuracy (77.3%), the best ability to correctly diagnose Myocardial Infarction (82.1%), and the second best for diagnosing Ventricular Hypertrophy.
  • The interpretation can be modified or supplemented with physicians' notes.
  • In addition to a statement of interpretation, the software provides the following measurements: Heart Rate, P Duration, PR Interval, QRS Duration, QT Interval, QTc Interval, P Axis, QRS Axis, and T Axis. You also get a detailed account of the amplitude, slope, and duration of each lead at the P, Q, R, S and T.

Report Formats

  • 3X4 Simultaneous Leads
  • 3X4 Sequential Leads
  • 12 Lead Average Complexes Report
  • 6X1 Report (10 second trace of each lead spanning 2 sheets, 6 leads/sheet)
  • 6X1 Report (5 second trace of each lead spanning 2 sheets, 6 leads/sheet)
  • 6X2 Report (5 second trace of each lead on a single sheet, in a 6X2 format)
  • Measurements Report: Amplitude, slope and duration data for all twelve leads

System Requirements

  • Microsoft Windows XP or VISTA (32-bit)
  • 300 MB Free Disk Space
  • 1 available Serial Port, or 1 available USB Port, or 1 available CF Card Slot, or 1 available Type II PC Card Slot


  • Patient leads are isolated from system and operator with 4kV protection
  • Defibrillator protected
  • Complies with AAMI EC11, IEC 60601-1, IEC 60601-1-1, EC 60601-1-2, and IEC 60601-2-25.


*Willems, J.L., et al., "The Diagnostic Performance of Computer Programs for the Interpretation of Electrocardiograms", New England Journal of Medicine (1991); 325: 1767-1773
