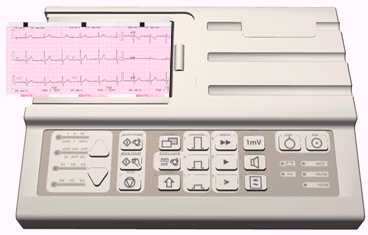

EZ-3 ECG
Specifications



Sample Printout

Microcomputer-controlled resting ECG

Digital sampling rate: 1000 samples/sec/chan

Dynamic range: ±9 m VAC

Electrode offset tolerance: ±300 m VDC

Time constant:>3.2 s

Digital resolution: 5 µV LSB

Frequency response: 0.05 - 150 Hz (-3 dB)

Myogram filter: 25 Hz or 35 Hz, user selected. ECGs can be copied with or without filter.

Line frequency filter: Distortion-free suppression of superimposed 50 or 60 Hz sinusoidal interferences by means of an adaptive digital filter.

Sensitivity: 5/10/20 mm/mV

Speed: 5/25/50 mm/s (direct)

Safety standard: CF according to IEC 601-1 and IEC 601-2-25

Simultaneous 10 second acquisition of 12 leads

Leads: I, II, III, aVR, aVL, aVF, V1-V6.
Standard/Cabrera

Format: 3 channel

Printer: High resolution thermal. 200 dots/inch.

Patient input: Fully floated and isolated, defibrillation protected

Size: 11.8" x 8.5" x 3" (296 x 220 x 77.5 mm)

Weight: 6.4 lbs / 2.9 kg

Power: 115/240 VAC, 50/60 Hz

Battery: 12V lead acid, rechargeable

Available with Measurements only only Measurements and Interpretation

Languages: English, Spanish, French

Special functions: lead off and artifact detection. 10 second memory with tracing copy capability

Safety class: I according to IEC 601-1
