 NEW  SpiroVision-3+TM

Converts a standard computer into a powerful spirometer


Windows Driven - Works with Windows 7, VISTA or XP on a notebook, netbook or desktop computer

Complete Spirometry - FVC (Flow Volume loops and t/V curves), SVC and MVV tests, Pre/Post Comparison, Broncho-challenge Testing

Economical - Cost effective way to turn an existing computer into a diagnostic spirometer

Cost-effective - Can be used with your choice of mouthpiece or bacterial filter, so you control the cost and quality of your disposables.

Pediatric Incentive - "Bubbles" encourages patients to perform tests properly, so you have optimal results quickly and easily.

Multiple test display - Graphs and data from different sessions can be put on the same report for comparison.

Trend analysis - Several parameters from different sessions can be
plotted on the same trend graph for analysis.

Quality control messages - Computer-driven messages help the technician recognize testing errors and validate a maneuver's technical quality.

User selected parameters
Reports can be tailored to include only the parameters you want, in the order you desire.

Choice of prediction standards
SpiroVision-3+ is programmed with the NHANESIII, Knudson, Morris,
Bass, ITS and other predicted sets.

Easily updated
The operator can add other predicted sets or modify existing ones, to keep SpiroVision-3+ current with industry changes.

Customizable
Patient records can include physicians' notes and comments. In addition to standard demographic information, fields can be custom-labeled to contain data specific to your application.

Network compatible
SpiroVision-3+ allows data sharing and is compatible with Windows network protocols

File Sharing
Individual tests or complete patient files can be transmitted to other stations electronically or stored on removable media

Accurate
SpiroVision-3+ meets or exceeds ATS standards for accuracy. Its unique sensor design that is unaffected by environmental changes. The built-in temperature sensor and the ability to make BTPS corrections ensure that measurements are exact for a wide range of flows, with low resistance.

.



Serial /USB connection
Standard connection -
no special hardware required

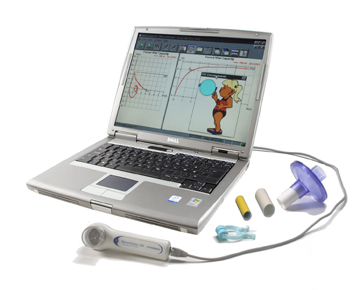

Real time F/V and T/V graphs
Assess test quality while the patient is still performing the maneuver

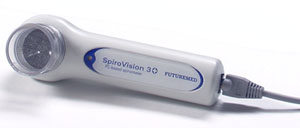

Smooth handset
Easy for all patients (young and old)
to hold







Related products:

3 liter calibration syringe (39250)


Bacterial filters (39295)

Discovery-2
