Tests
FVC, F-V Loops, VC, IVC, MVV, Respiratory
Pattern, Pre/Post Medication comparisons, broncho-challenge testing.
Trending.
Minimum
PC Configuration
- Pentium 133 MHz
- Windows XP,2000, NT4.0, 95, 98
- 16 Mb RAM
- 3.5 drive
- VGA, SVGA XGA monitor.
- PS2 port
- Available serial RS-232 port (*USB port may be used with
Windows™ XP)
- Any Mouse and printer compatible with the MS Windows™ operative
system
Measured Parameters
SpiroVision-3+ reports include your choice of
over 45 spirometry parameters, in the order you prefer. A complete list
is available in PDF format at

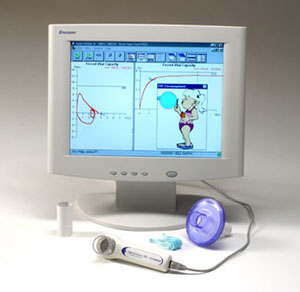

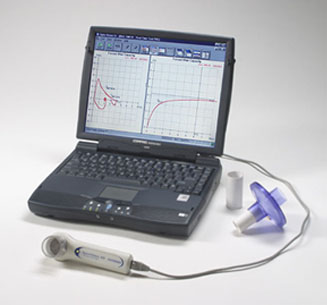

SpiroVision-3+ Standard Package:
| Item # |
Description |
| SV3+ |
SpiroVision-3+
Handset |
| 3P010 |
Turbine
flowmeter |
| 3P030 |
SpiroVision-3+
software |
| 3P050 or
3P050U |
Communication cable |
| 3P060 |
Operating
manual |
| 35080 |
Mouthpieces |
| 3P110 |

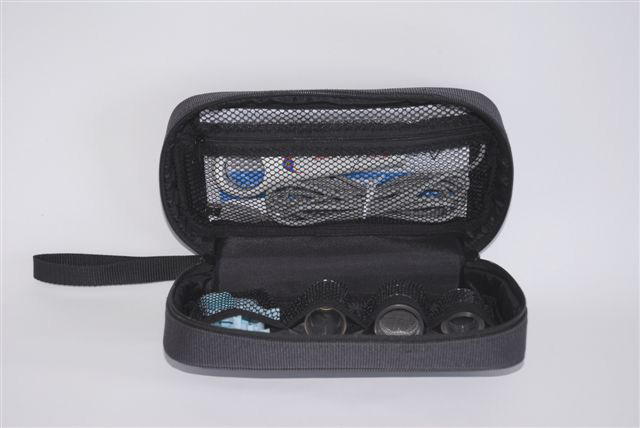

Carrying
case |
| 35070a |
Pediatric
adapter |
| 35295A |
Filter
adapter |
|
Sample
filters & noseclips |
 |
|
|
Predicted Values
SpiroVision-3+ is preprogrammed with the
Knudson, ITS, ECCS (ERS 93) and NHANESIII predicted formulas. In addition,
users can add other predicteds and customize or update the existing
ones using the simple "Formula Editor" tool.
Sensor
Reusable bidirectional
digital turbine. Compact handset, lightweight and easy for adults and children
to handle. Can be used with bacterial filters or cleaned with
bleach solution or other cleaning solutions.
| Range
(volume): |
12
liters |
| Range
(flow): |
0.03 - 20
l/s |
| Accuracy
of measurement: |
±
2% |
| Flow
Accuracy: |
±
5% or < 200 ml/s |
| Flow
Resistance: |
<
1.5 cmH2O at 14 l/s |
Hardware Features
| Connection: |
USB or RS-232
serial port (adaptable to USB port) |
| Power: |
Supplied by computer |
| Size: |
15 x 4.5 x 5.3 cm
(5.9 X 1.8 X 2.1") |
| Weight: |
77
g ~ 2 oz |
| Op.
Temp.: |
10-40º C |
| Op.
Humidity: |
less
than 90% RH |
:
Power: Supplied
Weight::
Optional Accessories
|
