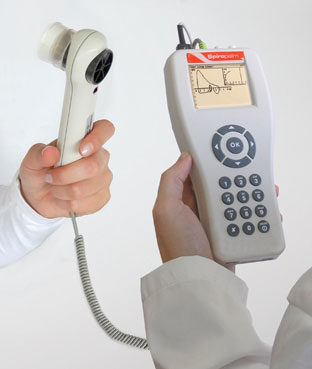

 NEW  Spiropalm

Handheld spirometry without sacrificing features and performance

Spiropalm is a new, handheld version of our popular Discovery-2 spirometer, maintaining features that users find helpful, in a more economical package:

Complete Spirometry - FVC (Flow Volume loops and t/V curves), SVC and MVV tests, Pre/Post Comparison

Real-time Graphs - Flow/Volume loops and time/Volume graphs are displayed in real-time

Bronchial Challenge Testing - Methacholine, cold air, or exercise can be used to induce bronchospasm and to identify and treat asthma.

Pediatric Incentive - "Bubbles" encourages patients to perform tests properly so you have optimal results quickly and easily.

Quality Control Messages - Software-driven messages help the technician recognize testing errors and validate a maneuver's technical quality.

Alphanumeric Keyboard - Reports can be personalized with patient data, notes, and a header.

Choice of Prediction Standards - Spiropalm is programmed with a choice of predicted standards, including NHANESIII, Knudson, ITS, Crapo, and other predicted sets.

Full Page Reports - A USB port in the back of the Spiropalm lets you connect directly to standard USB printers, for plain paper, full page printouts.

Economical - Cost effective way to perform diagnostic spirometry using your choice of mouthpiece or bacterial filter.

Choice of Languages - Spiropalm is available in English, Spanish, French, Portugese, Italian, German, Dutch, Chinese (Mandarin), Korean, and Turkish.

Accurate - Spiropalm meets or exceeds ATS standards for accuracy. Its unique sensor design is not affected by environmental changes. The built-in temperature sensor and the ability to make BTPS corrections ensure that measurements are exact for a wide range of flows, with low resistance.

Hardware Features

Power: Rechargeable battery, Li-Ion 1800 mAh
Size: 18.5 x 8.6 x 3.1 cm
(7.25 X 3.25 X 1.75")
Weight: 390 g  ~  13.5 oz
Display: LCD, B/W, with amber backlight








Sensor

Reusable bidirectional digital turbine. Compact handset, lightweight and easy for adults and children to handle. Can be used with bacterial filters or cleaned with bleach solution or other cleaning solutions.

Range (volume): 12 liters
Range (flow): 0.08 - 20 l/s
Accuracy of measurement: ± 2%
Flow Accuracy: ± 5% or < 200 ml/s
Flow Resistance: < 0.6 cmH2O l/s at 14 l/s

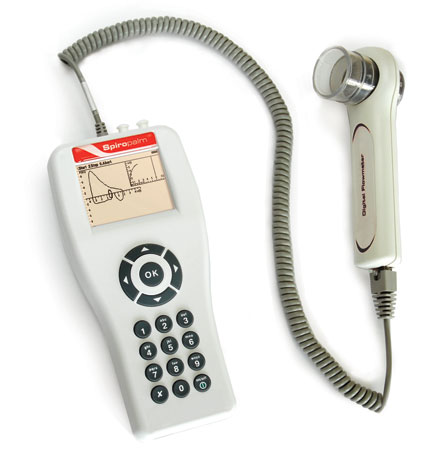

Spiropalm

Real-time graphs
Let you ensure test quality
as the patient is performing the maneuver


Bubbles

Bubbles Incentive Display
Encourages the patient to perform with maximum effort,
for most accurate results



Spiropalm handset

Smooth handset
Easy for all patients (young and old)
to hold






Related products:

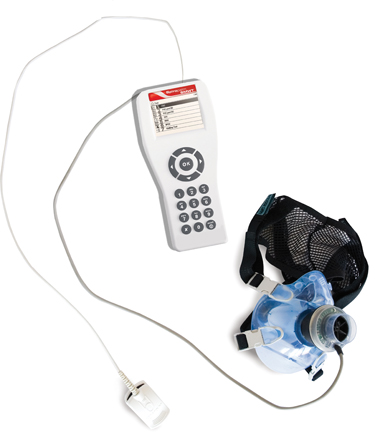

Spiropalm 6MWT
